Model CI Plus / CI 316

Saf-T Vent® CI Plus is the leading commercial double-wall special gas vent system for condensing heating appliances.

• Double wall 4"–32" diameters ID
• Reduced clearance to combustibles
• Patented Sure Seal™ locking system locks on inner flue conduit for a strong, secure joint
• UL 1738, ULC-S636; Oil: UL 641, ULC S609, ULC/ORD-441

Model Saf-T Vent SC Plus / SC 316

Saf-T Vent® SC is a concentric vent system designed for zero-clearance installation in light commercial and residential applications.

• Concentric venting — exhaust and intake through one vent
• 3"/5" and 4"/7" diameters (ID/OD)
• Reduced clearance to combustibles
• Factory-installed integral seal
• UL 1738, ULC-S636; Oil: UL 641, ULC S609, ULC/ORD-441

Model GC Plus / GC 316

Saf-T Vent® GC is a single-wall venting system designed for multiple applications on Category I, II, III and IV gas appliances.

• Single wall 18"–32" diameters ID
• Over-lapping joint keeps condensate away from seal
• Patented Sure Seal™ locking system
• Combines with single-wall Model EZ or double-wall CI Plus
• UL 1738 and ULC-S636 (Type BH Gas Vent)

Model EZ Seal Plus / EZ 316

Saf-T Vent EZ Seal is the fast and reliable venting solution for Category I, II, III, and IV gas appliances — no field sealant required.

• Single wall 3"–16" diameters ID
• Over-lapping joint keeps condensate away from seal
• Factory-installed integral seal
• UL 1738 and ULC-S636 (Type BH Gas Vent)

PolyPro®

PolyPro pipes are used for venting water heaters, condensing boilers and warm air furnaces. PolyPro is an environmentally safe, engineered alternative for condensing gas appliances — 100% recyclable, with no toxic or carcinogenic materials, chlorides, or heavy metals. Used safely throughout Europe for over 20 years, polypropylene has a higher operating temperature limit of 230°F/110°C (PVC is 149°F/65°C max; CPVC is 194°F/90°C), with a corrosion-free condensation management system.

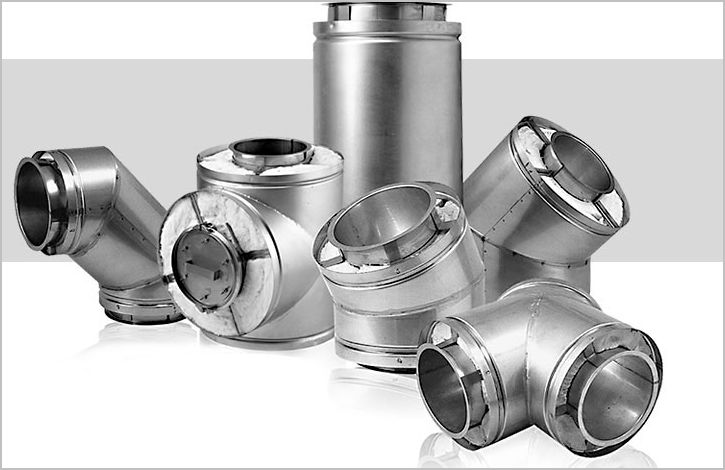

Model VSI/IVSI - Double Wall Multi-Use Pressure Stack

The Model VSI/IVSI is a factory-built, double-wall pressure stack system designed for demanding commercial, industrial, and marine venting applications. Crafted with high-quality materials and backed by rigorous safety certifications, it delivers unmatched durability, thermal performance, and installation efficiency.

Models VSI/IVSI - Double Wall Kitchen/Grease Duct

Engineered for superior performance, the VSI/IVSI Double-Wall Grease Duct delivers unmatched durability, thermal control, and ease of installation for commercial and industrial kitchens.  Designed to outperform traditional field-fabricated systems, these factory-built ducts offer the highest levels of safety, strength, and…

Model N - Single Wall Kitchen/Grease Duct

Model N is a factory-built, stainless steel cylindrical duct system specifically designed for kitchen exhaust and grease duct applications. Manufactured for high durability, simple installation, and long life, Model N delivers reliable venting for a wide range of commercial, industrial, and marine environments.  Model N is a…

Model N - Single Wall Multi-Use Pressure Stack

Factory-built for high quality, durability and long life Stainless steel construction for superior strength over traditional materials used Safety tested and listed to multiple UL chimney liner standards, signifying compliance with U.S. and Canadian codes UL 1777, ULC S635 (ref. installation instructions) 5” to 48” diameters…

Multi Appliance All-In-One Ventilation System

Simplify Ventilation in Multi-Tenant, Multi-Story Buildings The AMPCO Multi-Appliance All-in-One Ventilation System is purpose-built to streamline the exhaust ducting of multiple appliances—such as clothes dryers, bathroom fans, and domestic range hoods—into a single, safe, and space-saving vertical system. Perfect…

Special Gas Vent

AMPCO models VSI/IVSI/N with special gas vent listing, are positioned to complement Heatfab Saf-T Vent® product by broadening the applications on commercial and industrial projects requiring large diameters, above 32” ID, specifications calling for double-wall construction with greater than 1” of insulation, and projects…

ZClear™ Zero Clearance & Fire-Rated Grease Duct IVSI-Z3 / IVSI-Z4

Engineered for safety and performance in commercial kitchens, the AMPCO ZClear™ grease duct system features an integral fire-rated chase design that allows zero clearance to combustibles. Ideal of space-constrained installations and demanding commercial environments. Typical Exhaust Applications Kitchen Hoods Food Process Ovens…

Type B Gas Vent

The Type B designation is assigned to gas venting systems that meet the safety requirements of Underwriters Laboratories, Inc.  The Amerivent all-metal, double-wall gas vent is listed as Type B by Underwriters Laboratories, Inc. and is approved for such residential and commercial applications as Category 1 water heaters…

DirectVent® Pro 8x11

The Duravent Group is proud to expand their direct vent product lines with the DirectVent® Pro 8x11. Specifically engineered for direct vented gas fireplaces for luxury custom homes and commercial applications, this innovation combines clean design, superior performance, and effortless installation. Designed with premium…

Direct-Temp® Direct Vent

Direct-Temp – the latest innovation in Direct Vent technology for gas, pellet, and multi-fuel appliances, proudly serving the U.S. and Canada. Engineered for superior performance and durability, Direct-Temp systems feature a 304 stainless steel inner liner that delivers outstanding corrosion resistance and long-term…

Amerivent Direct Vent

The following Adapters are available to convert an AMERIVENT Direct Vent system (ADV) to a Selkirk Model Direct-Temp System (DT) or vise-versa. These Adaptors are available for 4" and 5" diameters, unpainted and painted. Adapters to use 4” & 5” Selkirk Direct-Temp with the 4” & 5” Amerivent Direct Vent product line. Adapters to…

DuraTech LDC 10in. - 24in.

DuraTech LDC is a versatile chimney system, available in diameters from 10" to 24", and expertly designed for a variety of high-temperature applications. With UL 103 (Type HT for smaller diameters) and CAN/ULC-604 listings, and featuring 1" Thermal Tech insulation for a safe 2" clearance to combustibles, DuraTech LDC offers…

6” - 8” UltimatePlus Chimney

Exclusive to Hearth Professionals UltimatePlus offers the latest technology for hearth professionals. Factory-built design with superior performance, durability and safety. Superior Stainless Steel inner and outer for exceptional strength and corrosion resistance. Professional grade, built to perform! No supplemental shielding…

• Sleek - Smooth - Clean Look

10” UltimatePlus Chimney

A twist-lock stainless steel coupler system with 1-inch overlap makes installation simple and quick. 1” insulated wall thickness Laser-welded outer and inner seams create a sleek, smooth, clean look. Stainless steel inner lining and outer casing provide fast venting of combustion products. 2′′ safety clearance from…

Model HS Chimney

This chimney is listed (UL 103TYPE HT) for venting flue gases not exceeding 1000°F under continuous operating conditions. In addition, UL has conducted additional tests at 1400F for one hour and 2100°F for 10 minutes to verify compliance with UL test standards. The Model HS incorporates a design woven ceramic fiber refractory…

Model DCC - Black Stovepipe

The Amerivent Model DCC double-wall stovepipe is designed for use with Amerivent Model HS/HSS chimney systems. Model DCC is UL-listed for a minimum airspace clearance to combustibles of 6" to the rear and side walls, 8" to ceilings. NOTE: This product has been discontinued as of August 2024. We recommend the Ultimate StovePipe…

Fireplace and Stove Accessories

Offering a wide range of quality RUTLAND products to maintain, clean, and repair wood or gas stoves, fireplaces, firepits, hearths, chimneys, and BBQs. RUTLAND serves the needs of homeowners and professionals alike. The product line includes fire starters, heat resistant cements and mortars, creosote and soot removers, high…

Model TLC System

Model TLC All-Fuel Chimney offers current technology in factory-built chimney design by providing superior performance, durability and safety. Embossed Coupler – Prevents moisture penetration 304 Stainless Steel Inner Liner – High grade material heats up quickly to enhance draft 304 Stainless Steel Outer Casing - Premium…

Ultimate StovePipe (Model USP)

The Ultimate connection between your wood stove and insulated chimney. Ultimate StovePipe™ is designed for the hearth professional. It goes together easily and provides optimal performance with a sleek, smooth, clean appearance to complement any wood stove. (Stove pipe)

UPP — Ultimate Pellet Pipe

The superior silicone gasket technology seals the system and provides a leak-free connection. Easy to assemble for safe and secure connection. Easy to disassemble for inspection and cleaning. Laser-welded inner and outer pipes ensure a consistently round pipe with a clean profile.

ALK — Aluminum Flexible Chimney Liner Kits

Transform a chimney installation or repair project with our comprehensive ALK Aluminum Flexible Chimney Liner Kits. Engineered for durability and designed or ease of installation.

Stainless Steel Flexible Chimney Liner (Model SLK)

Ensure safe, efficient venting with premium stainless steel flexible chimney liner. Engineered for versaility and built to last. Type 316 stainless steel construction resists corrosion and withstands extreme temperatures. 0" clearances between liner and masonry chimney interior with the insulation wrap. Can be installed on gas…

Conventional Curbs

Prefabricated roof curb — see the linked product page and submittal for sizes and deck type.

EC-2A/EC-2B — Expansion & Wall Curbs for Lightweight Fill, Tapered Insulation, or Single-Ply Roofing

Prefabricated roof curb — see the linked product page and submittal for sizes and deck type.

EC-3A/EC-3B — Expansion & Wall Curbs for Uninsulated Decks

Prefabricated roof curb — see the linked product page and submittal for sizes and deck type.

EC-4A/EC-4B — Expansion & Wall Curbs for Insulated Decks

Prefabricated roof curb — see the linked product page and submittal for sizes and deck type.

Kitchen Ventilation Curbs

Prefabricated roof curb — see the linked product page and submittal for sizes and deck type.

RC-7 Metal Roofs

Prefabricated roof curb — see the linked product page and submittal for sizes and deck type.

RC-8 Pre Ribbed Metal Roofs

Prefabricated roof curb — see the linked product page and submittal for sizes and deck type.

Burglar Bar Style

Prefabricated roof curb — see the linked product page and submittal for sizes and deck type.

Hinge Assembly

Prefabricated roof curb — see the linked product page and submittal for sizes and deck type.

Solid Platform Style

Prefabricated roof curb — see the linked product page and submittal for sizes and deck type.

Sound Reduction Style

Prefabricated roof curb — see the linked product page and submittal for sizes and deck type.

VR — Vibration Isolation Style

The RPS “VR” Vibration Rail Base isolates rooftop equipment noise and vibration while providing continuous structural support and a fully air- and water-tight seal. Each VR system is custom-engineered to fit between rooftop equipment and an RPS roof curb. Because each application is unique, project details may differ from those shown.

• Continuous closed-cell neoprene gasket on top, bottom, or both surfaces
• 1" or 2" extruded aluminum extensions when equipment base rail exceeds 3" high
• Cross members available to support and seal flexibly connected ducts
• Separate spring rail or isolators required for condenser sections on separate equipment rails

CA-1 Adapters-Large

Curb adapter / extension for raising and mounting rooftop equipment. Product and submittal linked.

CA-2 Adapters- Small

Curb adapter / extension for raising and mounting rooftop equipment. Product and submittal linked.

CE-1 Adapter

Curb adapter / extension for raising and mounting rooftop equipment. Product and submittal linked.

ER-2A/ER-2B — Equipment Rails for Lightweight Fill, Tapered Insulation, or Single-Ply Roofing

Designed for lightweight fill, tapered insulation, and single-ply roofing applications. Made from 18-gauge galvanized steel with unitized, reinforced construction and welded corner seams for durable, reliable support. A minimum 11" curb height and optional A-Style or B-Style wood nailers offer flexibility for various roofing needs.

ER-3A/ER-3B — Equipment Rails for Uninsulated Decks

Prefabricated equipment support rail. Product and submittal details linked below.

ER-4A/ER-4B — Equipment Rails for Insulated Decks

Prefabricated equipment support rail. Product and submittal details linked below.

Pipe Portal Systems Single and Multi Openings

Weathertight pipe and duct penetration flashing system. See linked details.

5-Hole Pipe Portal Flashing System

A reliable, weather-tight solution for roof pipe penetrations from 1/2" to 2-1/2" nominal pipe O.D. Each premanufactured system includes a roof curb, a single or double Pipe Portal® cover with sealing ribs, and five molded EPDM rubber caps with stainless steel clamps. Durable and UV-resistant for long-lasting performance.

Alumi-Flash Flashing Systems — Standard and Large

An economical, weathertight solution for routing pipes through roofs, accommodating pipe sizes from 3/8" to 12". The seamless .060" spun aluminum base and molded EPDM rubber cap create a durable, maintenance-free seal allowing vertical and horizontal pipe movement, with stainless steel clamps and a Weather-Tite Pressure Seal.

Deck-Mate Flashing System

A premium, maintenance-free solution for sealing pipe penetrations in metal roof and wall systems. Unlike caulk-based alternatives — which industry standards explicitly warn against — Deck-Mate employs an innovative stepped profile and stainless steel clamp system to create a permanent, water-tight compression seal that adapts to any roof contour, pitch irregularity, or pipe configuration.

Pipe Portal Cover and Caps

For pipe penetrations from 3/8" to 12", with stainless steel clamps.

• N18: four 3/8"–1" pipes
• N21: four 1"–2" pipes
• N28: two 3/8"–1" & two 1"–2" pipes
• N62: 2"–6" pipe
• N182: 8"–12" pipe

Special Pipe Portal Systems — Large Openings

A heavy-duty roof curb assembly for large pipe penetrations in metal roofing. Built from 18-gauge galvanized steel with integrated wood nailer, galvanized cover, neoprene wrap, and dual stainless steel clamps for a secure, corrosion-resistant, water-tight installation.

Standard single Pipe Supports

Adjustable rooftop support for pipe and duct runs. See linked product and submittal.

Heavy Duty Pipe Support

Adjustable rooftop support for pipe and duct runs. See linked product and submittal.

Multi Pipe Supports

Submittal Form: N/A

Pedestal Plus

Submittal Form: N/A

Standard Rectangle Duct Support

Adjustable rooftop support for pipe and duct runs. See linked product and submittal.

Standard Round Duct Supports

Submittal Form: N/A

EXT — Exterior Access Doors

Milcor EXT door provides critical service access for your exterior building walls. Tested for weather resistance and also has a locking option where security may be an issue. Specifications Optional Colors: Grey, Gold Sand and Jet Black

• Gasket: EPDM foam gasket for weather barrier

AP — Recessed Door for Acoustical Plaster

Milcor’s Style AP recessed panel access door is designed for concealed installation in plaster ceilings to maintain sound absorption and a clean ceiling appearance. Door Panels recessed for applications of acoustical plaster. Ceiling sound absorption is maintained by the plaster-filled door panels When door panels are filled…

AT — Recessed Steel

Milcor AT access doors for acoustical tile ceilings provide a virtually concealed installation. Recessed door panels receive a covering of acoustical tile, leaving only the narrow edges exposed to keep acoustical surface intact and contribute to sound control and appearance. Plastic grommet protects the hole made in tile for…

ATR — Recessed Fire Resistive Steel

Milcor ATR access doors for suspended drywall ceilings provide service access that fits within the ceiling grid support system. Recessed door is filled with matching materials and finished flush with the surrounding ceiling surface. The installed unit is virtually concealed. Plastic grommet is furnished to protect the hole made…

CF — Aluminum Doors for Suspended Ceiling

Milcor CF aluminum ceiling access doors provide convenient access to services or controls located in ceilings. Units are installed by bolting the hanger brackets to the hanger rods furnished and installed by contractor. The aluminum cover and frame with stainless steel hinges produce a strong, lightweight, corrosion-resistant…

CT — Aluminum Doors for Suspended Ceiling

Milcor aluminum ceiling access doors provide convenient access to services or controls located in ceilings. Model CT is designed for use in suspended tile ceilings. Units are installed by bolting the hanger brackets to the hanger rods furnished and installed by the ceiling contractor. Aluminum cover and frame with stainless…

DW — Standard Flush Door

Flush panel means that door is unobtrusive in appearance. Outer frame has special drywall bead configuration so that drywall cement may be applied to cover and conceal the flange. Standard sizes fit standard wood stud or steel stud spacing of 12”, 16”, or 24” on center with no additional bracing. Special double-acting concealed…

DWR — Recessed Door

Milcor’s Style DWR recessed panel access door is designed for concealed installation in drywall applications requiring sound absorption and a clean ceiling or wall appearance. Sound absorption is maintained by the field installed drywall panel inserted into the recessed door panels. When door panels are filled with drywall…

E — Economical Flush Door

All steel construction Flush, removable face with concealed latches and hinges 22 gauge face, 24 gauge frame Available in bright white finish

K — Standard Flush Door

An expanded metal casing bead, included as part of the frame, provides a neat, protected finish between frame and plaster, while furnishing added plaster reinforcement. The door panel finishes flush with plaster surface, making an unobtrusive installation when painted, to match the wall or ceiling. The door panel is mounted to…

M — Architectural Grade Flush Door

Our most popular access door with one-piece frame is the standard for the industry. The attractive 16 gauge one-piece frame provides 100% clear opening with superior strength, rigidity and true square shape. The 16 gauge door panel is mounted to the frame on concealed spring hinges that open to 175 degrees for complete access…

NIFR — Non-Insulated Fire-Rated Access Doors

Fire-Rated: Carries both UL and CUL 11/2 hour, Class B fire rating. Rating is maintained for a 2-hour wall with our non-insulated fire-rated access door, installed where temperature rise is not a factor. This door is designed for wall application only. Reduced Sound Transmission: The sandwich-type door panel provides the…

Primex AP6x9SW – Access Panel

The Primex access panel (AP6x9SW) is an aesthetically-pleasing and easy-to-install cover and frame unit. At 6 by 9 inches, the AP6x9SW provides excellent coverage and easy access to HVAC, plumbing or electrical systems.

SEC — Security or Detention Doors

Milcor security access doors for walls and ceilings provide critical security and tamperproof access where security is of primary importance. Special stainless steel butt hinge prevents removal of hinge. A detention-type deadbolt lock is an available option to prevent unauthorized access. Tamperproof screws are available when…

VALVE — Versatile Valve Box

Milcor’s Versatile Valve Box with one-piece frame is the standard for the industry. The design provides 100% clear opening with superior strength, rigidity and true square shape. The fully enclosing box keeps valves clean and clear from excess materials within the wall cavity. The door panel is mounted to the frame on a piano…

UFR — Universal Fire Rated Access Doors

Rating is maintained for a 2-hour wall Fire-Rated: Carries both UL and CUL 11/2 hour, Class B fire rating, as well as the Warnock Hersey Label for three-hour noncombustible floor/ceiling systems. Certified 250 Degree Temperature Rise Protection: Milcor UFR Doors are insulated with super-efficient insulation to limit temperature…

UFR DW — Fire Rated Access Door

Drywall bead fire rated doors have been increasingly specified in the past few years.  Milcor responded by introducing the UFR-DW Style in 2008. Code approvals the same as with the UFR Style. Code approved for both walls and ceilings. Underwriters Laboratory Class B, 1-1/2 hour rating meets UBC, IBCO and BOCA codes for two hour…

DCM — Square Cammed Door

Formed 22-gauge galvanized steel frame Formed 24-gauge galvanized steel door Fiberglass encapsulated 1" thick door Preformed dovetail tabs allow for easy and quick installation Available in sizes from 6" x 6" to 24" x 24" Provides an estimated R-value of 3 Utilizes open-cell polyester foam gasket Dual-cam design offers complete…

DHG — Square Hinged Door

Formed 22-gauge galvanized steel frame Formed 24-gauge galvanized steel door Fiberglass encapsulated 1" thick door Preformed dovetail tabs allow for easy and quick installation Available in sizes from 6" x 6" to 24" x 24" Provides an estimated R-value of 3 Utilizes open-cell polyester foam gasket Full-length hinge allows door…

DSA — Compression Duct Door for Single-Wall Duct

Formed galvanized steel Available in specialty metals Available in sizes 8" x 4", 10" x 6" and 16" x 12" Available for both flat and round duct Self-adhesive template included for proper installation Formed 20-gauge galvanized steel Utilizes closed-cell neoprene gasket to ensure proper sealing requirements Pressure tested to…

DSA DW — Compression Duct Door for Double-Wall Duct

Utilizes closed-cell neoprene gasket to ensure proper sealing requirements Increased bolt length allows door to encompass double wall or insulated duct

• Formed galvanized steel
• Available in specialty metals
• Available for both flat and round duct
• Formed 20-gauge galvanized steel

DSA HT — Compression Duct Door for High Temperature Duct

• Formed galvanized steel
• Available in specialty metals
• Available for both flat and round duct
• Formed 16-gauge black iron

Saf-T-Rail — (Retrofit)

Retrofit safety railing for roof hatches. Patent #US10501942B2.

• Installs in minutes with non-penetrating attachments using standard tools
• Telescoping rails fit all standard single-leaf hatch sizes and many custom sizes
• Installs on existing hatches with cap flashings from ANY manufacturer
• Safety-yellow powder coat · structural aluminum square tubing
• 5-year warranty

Energy Efficient Series

The Energy Efficient Series Roof Hatches offer durable, insulated access with 2” polyisocyanurate insulation for superior thermal performance. Available in galvanized steel (white powder coat) or aluminum (mill finish), each hatch features a 12" high insulated curb, heavy-duty torsion spring lift assist, and a slam latch with…

Equipment Access-Double Leaf

The Equipment Access Double Leaf Roof Hatch provides wide, secure access for large equipment installations. Available in galvanized steel or aluminum options, it features dual covers that open to 90°, assisted by heavy-duty torsion springs. Each unit includes 1" fiberglass insulation, a 12" high insulated curb with integral…

Ladder Access

The Ladder Access Roof Hatch is designed for safe and efficient rooftop entry. Available in galvanized steel or aluminum, it features a cover that opens to 90°, assisted by heavy-duty torsion springs. Insulated with 1" rigid styrofoam or fiberglass, it includes a 12" high curb with integral counterflashing, pre-drilled mounting…

M-1 Single Leaf Hatch

The Single Leaf Roof Hatch provides secure, insulated rooftop access with a 14-gauge galvanized steel cover and curb, finished in a durable white powder coat. The cover opens to 90° with gas spring assist and features 1" rigid Styrofoam insulation for energy efficiency. A 12" high curb with integral counterflashing and…

Service Stair

The Service Stair Roof Hatch provides durable rooftop access for stair installations. Available in galvanized steel or aluminum, it features a cover that opens to 90°, assisted by heavy-duty torsion springs.

Ship Stair

The Ship Stair Roof Hatch is designed to provide safe, insulated access for ship stair configurations. Constructed from galvanized steel or aluminum, it features a cover that opens to 90° with the help of heavy-duty torsion spring assist.

Thermal Pro—24

The Thermal Pro–24 Roof Hatch is a high-performance aluminum access solution featuring 3" polyisocyanurate insulation, thermal breaks, and condensation liners for superior energy efficiency and resistance to extreme temperature changes.

Upright Safety Bar

The Milcor Upright Safety Bar is designed to assist in the safe passage when exiting and entering the roof hatch. A heavy- duty, hinged steel mechanism allows the upward and downward movement of the bright yellow safety bar. No need to attach bar to center of ladder rungs. Milcor's Upright Safety Bar has been designed to…

Styles F and T — Security Aluminum Floor Doors

Durable 1/4" aluminum tread or smooth plates with extruded aluminum frames, designed to support a 150 psf live load.

Styles F/T/Z — Non-Security Aluminum Floor Doors

Lightweight aluminum covers with varying thicknesses and recessed designs supporting a minimum 200 psf live load. Extruded or welded aluminum frames, neoprene gaskets, and lift rings provide reliable, low-maintenance floor access without latches or lift assistance.

Styles GA and GD — Sidewalk Doors, Steel and Aluminum

Heavy-duty 1/4" steel or aluminum diamond tread plates with extruded aluminum frames, designed for a 300 psf live load. Integral masonry anchors, perimeter drainage gutters with 1-1/2" drain couplings, snap latches, torsion coil lift assist, and stainless steel hardware.

ABS ReRoof Drain

The ABS ReRoof Drain is a robust, UV-stabilized roof drain designed for reliable performance in reroofing applications. It features a 14" O.D. ABS flange with a top-rib flashing lock, a cast-aluminum epoxy-coated gravel guard and clamping ring, and a polyethylene or cast-aluminum dome strainer. A modified asphalt–impregnated…

Aluminum Insert ReRoof Drain

Drain Insert shall consist of a 15" or 18" O.D. spun Aluminum drain flange The outlet pipe shall be of extruded aluminum with a continuous weld to drain flange. The outlet pipe shall have a pre-compressed modified asphalt impregnated expanding foam, sealing tape, having a temperature range of -40 F to +185 F and 150% minimum…

Aluminum ReRoof Drain

Drain shall consist of a molded ultraviolet stabilized polyethylene or cast aluminum dome strainer A cast aluminum epoxy-coated gravel guard and clamping ring 15" or 18" O.D. spun Aluminum drain flange The outlet pipe shall have a pre-compressed modified asphalt impregnated expanding foam, sealing tape, having a temperature…

PVC White ReRoof Drain

Drain shall consist of a molded ultraviolet stabilized polyethylene or cast aluminum dome strainer A cast aluminum epoxy coated gravel guard and clamping ring 14" O.D. injection molded ultraviolet stabilized white PVC drain flange for use with hot air and chemically welded roof systems with top rib flashing lock. The outlet…

ReRoof Drain with Overflow Clamping Ring

Drain shall consist of a molded ultraviolet stabilized polyethylene or cast aluminum dome strainer A cast aluminum epoxy coated overflow clamping ring A reroof drain of (choose one: injection molded black ABS flange and outlet tube, injection molded white PVC flange and outlet tube, spun aluminum flange with extruded aluminum…

ABS Drain and Plus Pack

The ABS Roof Drain with Plus Pack features a UV-stabilized polyethylene or cast aluminum dome strainer, epoxy-coated aluminum gravel guard and clamping ring, injection-molded ABS drain body with 6" Schedule 40 extension, cast aluminum underdeck clamp, and flexible EPDM connector with stainless steel clamps. Available in 3", 4"…

Cast Aluminum Drain and Plus Pack

Furnish and install the Portals Plus, Inc. Roof Drain with Plus Pack, at all drain openings as specified on drawings. Drain shall consist of a molded ultraviolet stabilized cast aluminum dome strainer A cast aluminum epoxy coated gravel guard and clamping ring, cast aluminum drain body A cast aluminum underdeck clamp A flexible…

Cast Iron Drain and Plus Pack

Molded ultraviolet stabilized polyethylene dome strainer Cast aluminum, epoxy-coated gravel guard and clamping ring Cast iron drain body Cast aluminum underdeck clamp Flexible EPDM connector with stainless steel clamps.

• Sizes: Available in 3", 4" and 6"

Menzies Clamp-Tite Spun Aluminum Drain

Clamping ring bolts down into compression fit mounting ring. Stainless steel screw fastens die-cast aluminum strainer. No vertical studs to interfere with membrane. Lower clamping ring mount is embedded in the drain bowl. No bolts penetrating drain body. Cast aluminum strainer. All fasteners are stainless steel. Stocked in…

• Longer pipes available.

Menzies Spun Aluminum Value Drain

Die-cast aluminum strainer. Stocked in insert sizes 2″ (51mm), 3″ (76mm)and 4″ (102mm). 5″ (127mm) and 6″ (152mm) available on request. For complete seal assurance this product works best when used with Menzies Blue Drain Seal. 3″, 4″, 5″ and 6″ drains are compatible with Blue Drain Seal. Custom sizes and pipe lengths available…

• Longer pipes available.

Plus Pack Roof Drain with Overflow Clamping Ring

Furnish and install the Portals Plus, Inc. Roof Drain with Plus Pack and Overflow Clamping Ring, at all overflow drain openings as specified on drawings. Drain shall consist of a molded ultraviolet stabilized polyethylene or cast aluminum dome strainer A cast aluminum epoxy coated overflow clamping ring A drain body of (choose…

PVC Drain and Plus Pack

Furnish and install the Portals Plus, Inc. Roof Drain with Plus Pack at all drain openings as specified on drawings. Drain shall consist of a molded ultraviolet stabilized polyethylene or cast aluminum dome strainer A cast aluminum epoxy coated gravel guard and clamping ring An injection molded ultraviolet stabilized PVC drain…

Parapet/Scupper Drain

Drains for sidewall roof installation Furnish and install the Portals Plus Scupper Drain at all drain openings as shown on drawings. Scupper Drain consists of a removable epoxy coated cast aluminum intregral flashing clamp with angled grate, with a free area of not less than 17.60 sq. in A drain sump body 6" tall by 11" wide of…

Bearing Pan

For installing a roof drain flush with the top surface of an uninsulated roof deck, such as plywood or poured decks. Made of heavy 18-gauge spun steel for easy topside installation, allowing structural poured decks to proceed ahead of the plumber — only a standard core hole is required. Accepts all Portals Plus roof drains and all roof decks.

Extension Pan

For installing a roof drain flush with the top surface of roof deck insulation. Creates an overflow drain when used with an adjacent roof drain installed in a Bearing Pan at the deck surface, and allows insulation to surround the drain and pipe above the deck, preventing condensation. Simple topside installation of the heavy 18-gauge spun steel pan; accepts…

Menzies Aluminum Box Scupper

Aluminum box scupper in a standard 4" x 4" x 11" size with 2" and 3" insert sizes available. Made from 14-gauge aluminum, with custom-sized scuppers with flanges available to suit specifications, longer outlet boxes on request, and a TPO-compatible version.

Menzies Aluminum Box Scupper TPO

Aluminum box scupper with Menzies TPO Direct Weld™ for fast installation on TPO roofing systems. Standard 4" x 4" x 11" size with 2" and 3" insert sizes, made from 14-gauge aluminum. Custom-sized scuppers with flanges can be made to suit specifications, and longer outlet boxes are available.

Menzies Blue Drain Seal

Provides a complete seal between drain and outlet pipe connections and prevents water back-up damage when using insert drains. Available in 3", 4", 5", and 6" sizes, with a 24" screwdriver available for installation. Listed to meet Canadian and U.S. standards by QAI; meets CSA B79 and ASME A112.6.4.

Menzies Clamp-Tite Aluminum Box Scupper

Clamping collar secures the membrane to the flange. Full 4" flange with a 4" x 4" x 17" outlet box featuring an overflow and cleanout box; the outlet box can be trimmed to wall thickness with no need to cut an oversized hole. 3" insert size pipe, stainless steel fasteners, and QAI-listed to CSA B79 and ASME A112.6.4. Also available in TPO Direct Weld™.

Menzies Clamp-Tite Aluminum Flat Top Drain with Bowl

Low-bowl aluminum drain with clamping ring, built with heavy construction to withstand foot traffic in concrete substrate areas. Stocked insert sizes 2", 3", and 4", with a total height from deck of just .56". Uses the same connections as a conventional drain; longer pipes available.

Menzies Clamp-Tite Spun Aluminum Drain Small Bowl

Flat shallow bowl fits existing drains with shallow bowls. The lower clamping-ring mount is spun into the drain bowl — embedded, with no bolts protruding through the drain body — and the cast aluminum strainer is fastened with a hex-head stainless steel screw. Stocked in 2", 3", and 4" insert sizes (3" and 4" compatible with Blue Drain Seal™); QAI-listed to…

Menzies Econo Aluminum Drain

Economical aluminum drain for use in drainage over non-heated areas, with HOTWELD compatibility for torch-on roofing. Stocked in 2", 3", and 4" sizes, with custom sizes and extended pipe lengths available by request. Also available in TPO Direct Weld™.

Menzies Econo Aluminum Drain TPO

Economical aluminum drain for use on overhangs over non-heated areas, with Menzies TPO Direct Weld™ for fast installation on TPO roofing systems. Stocked in 2" and 3" sizes; custom sizes, extended pipe lengths, and longer pipes available by request.

Menzies Koala Deck Drain

Deck drain with an oversized, super-strong cast aluminum strainer over a heavy aluminum drain body and pipe. Flange available in PVC, TPO, and aluminum, with 2", 3", and 4" insert outlet pipes. Attachment drain coupler available separately; CSA listed.

Menzies Koala Deck Drain No Hub

No-hub version of the Koala deck drain with an oversized, super-strong cast aluminum strainer and a one-piece aluminum body and flange. Flange available in PVC, TPO, and aluminum with 2", 3", and 4" insert outlet pipes. Attachment drain coupler available separately; CSA listed.

Menzies Koala Deck Drain No Hub PVC and TPO

Koala deck drain no-hub with a PVC- or TPO-coated flange for direct membrane welding. Features an oversized, super-strong cast aluminum strainer, heavy aluminum drain body and pipe, and 2", 3", and 4" insert outlet pipes. Attachment drain coupler available separately.

Menzies Metal Leaf Strainer 2”-3” Combo

Leaf strainer that prevents leaves and debris from entering the drainage system and helps keep gutter down pipes from clogging — simply insert into the pipe. Fits both 2" and 3" drains.

Menzies Strainer Kit for Clamp-Tite Box Scupper

Strainer kit that fits Menzies copper and aluminum Clamp-Tite scuppers with a simple, bolt-on installation. Can be added to existing Menzies Clamp-Tite scuppers. Includes strainer and retaining plate only (scupper not included).

Menzies Undersize Drain Coupler

Available in three sizes to connect undersized drains to standard DWV plumbing pipe — 1.75" to 2.0", 2.75" to 3.0", and 3.75" to 4.0" DWV. Fits most undersize drains with no flow restriction inside the pipe; external connection uses stainless steel clamps. 10-year warranty.

Aluminum Shingle Flashing

For all round penetrations from 1.25" through 4" occurring in shingle roofing systems under 40° slope. Consists of an elastomeric collar — resistant to ozone, ultraviolet degradation, and temperature extremes — integrally locked into a rigid, rust-resistant base of .032 mill finish aluminum. Listed by UPC, SBC, and BOCA; available in 1.25"–1.5", 2", 3", and…

Alumi-Flash Extra Tall with C-126 Cap

Engineered to provide reliable, long-lasting waterproofing at all roof penetration points where a single pipe measuring 2"–6" in diameter passes through the roof system. Heavy-duty .060" spun aluminum base with a 13" height and 14" base diameter, an 8" collared opening with two roll-formed beaded sealing rings, an EPDM compression-molded C-126 cap, and the…

Alumi-Flash Extra Tall with C-212 Cap

For roof penetration points where up to two pipes .375"–1" in diameter and up to two pipes 1"–2" in diameter penetrate the roof. Includes a .060" spun aluminum base unit with a 13" height and 14" base diameter, an 8" collared opening with two beaded sealing rings roll-formed into the top edge, an EPDM compression-molded C-212 cap (black or white), and…

Alumi-Flash Extra Tall with C-412 Cap

For roof penetration points where up to four pipes 1"–2" in diameter penetrate the roof. Includes a .060" spun aluminum base unit with a 13" height and 14" base diameter, an 8" collared opening with two beaded sealing rings roll-formed into the top edge, an EPDM compression-molded C-412 cap, and Portals Plus stainless steel Snaplock Clamps.

Alumi-Flash Extra Tall with C-481 Cap

For roof penetration points where up to four pipes .375"–1" in diameter penetrate the roof. Includes a .060" spun aluminum base unit with a 13" height and 14" base diameter, an 8" collared opening with two beaded sealing rings roll-formed into the top edge, an EPDM compression-molded C-481 cap, and Portals Plus stainless steel Snaplock Clamps.

Alumi-Flash Extra Wide with C-126 Cap

Designed to provide dependable waterproofing at all roof penetration points where a single pipe measuring 2"–6" in diameter passes through the roof, with a wide, stable base for enhanced protection. Features a .060" spun aluminum base with a 4" height and 18" base diameter, an 8" collared opening with two roll-formed beaded sealing rings, an EPDM…

Alumi-Flash Extra Wide with C-212 Cap

For roof penetration points where up to two pipes .375"–1" in diameter and up to two pipes 1"–2" in diameter penetrate the roof. Includes a .060" spun aluminum base unit with a 4" height and 18" base diameter, an 8" collared opening with two beaded sealing rings roll-formed into the top edge, an EPDM compression-molded C-212 cap (black or white), and…

Alumi-Flash Extra Wide with C-412 Cap

For roof penetration points where up to four pipes 1"–2" in diameter penetrate the roof. Includes a .060" spun aluminum base unit with a 4" height and 18" base diameter, an 8" collared opening with two beaded sealing rings roll-formed into the top edge, an EPDM compression-molded C-412 cap, and Portals Plus stainless steel Snaplock Clamps.

Alumi-Flash Extra Wide with C-481 Cap

For roof penetration points where up to four pipes .375"–1" in diameter penetrate the roof. Includes a .060" spun aluminum base unit with a 4" height and 18" base diameter, an 8" collared opening with two beaded sealing rings roll-formed into the top edge, an EPDM compression-molded C-481 cap, and Portals Plus stainless steel Snaplock Clamps.

Alumi-Flash Large with C-182 Cap

For roof penetration points where one pipe 8"–12" in diameter penetrates the roof. Includes a .060" spun aluminum base unit with a 4" height and 22" base diameter, a 14" collared opening with two beaded sealing rings roll-formed into the top edge, an EPDM compression-molded C-182 cap, and Portals Plus stainless steel Snaplock Clamps.

Alumi-Flash Standard with C-126 Cap

Provides reliable waterproofing at all roof penetration points where a single pipe measuring 2"–6" in diameter passes through the roof. Features a .060" spun aluminum base (4" height, 14" base diameter) with an 8" collared opening and two roll-formed beaded sealing rings, an EPDM compression-molded C-126 cap, and the Portals Plus stainless steel Snaplock…

Alumi-Flash Standard with C-212 Cap

For roof penetrations with up to two pipes .375"–1" and up to two pipes 1"–2" in diameter. Includes a .060" spun aluminum base (4" height, 14" base diameter) with an 8" collared opening and two roll-formed beaded sealing rings, an EPDM compression-molded C-212 cap, and Portals Plus stainless steel Snaplock Clamps.

Alumi-Flash Standard with C-412 Cap

For roof penetrations with up to four pipes 1"–2" in diameter. Includes a .060" spun aluminum base (4" height, 14" base diameter) with an 8" collared opening and two roll-formed beaded sealing rings, an EPDM compression-molded C-412 cap, and Portals Plus stainless steel Snaplock Clamps.

Alumi-Flash Standard with C-481 Cap

For roof penetrations with up to four pipes .375"–1" in diameter. Includes a .060" spun aluminum base (4" height, 14" base diameter) with an 8" collared opening and two roll-formed beaded sealing rings, an EPDM compression-molded C-481 cap, and Portals Plus stainless steel Snaplock Clamps.

Deck Mate

Long-lasting, watertight seal at metal roof or wall penetrations — no caulk needed. The stepped profile forms a compression seal around Schedule 40 piping, with reinforcing ribs supporting the stainless steel Snaplock Clamp. Accommodates penetrations from .125" to 26" in diameter, with a dead-soft aluminum flange that conforms to any corrugated roof contour…

Galvanized Shingle Flashing

For all round penetrations from 1.25" through 4" occurring in shingle roofing systems under 40° slope. Consists of an elastomeric collar — resistant to ozone, ultraviolet degradation, and temperature extremes — integrally locked into a rigid, rust-resistant base of 24-gauge galvanized steel. Listed by UPC, SBC, and BOCA; available in 1.25"–1.5", 2", 3", and…

Large Pipe Boot

Safeguards larger pipe penetrations from 6" to 12" (or 8" to 12") in diameter with a robust 60 mil EPDM or Neoprene compression-molded body and the Portals Plus Snaplock Clamp for a secure, watertight seal. Available in white or black, including a White TPO 6"–12" option.

Large Retrofit

For protrusions of 3.5" to 6" nominal diameter penetrating roofs, floors, and walls where the penetration cannot be disconnected or have a seal slid over the top. EPDM for single-ply rubber systems or Neoprene for hot-applied systems (serviceable -60°F to +270°F, ozone- and UV-resistant), with tongue-and-groove sealing lips, an overlapping seam tab, a…

Medium Pipe Boot

Watertight seal at roof penetrations under 6" in diameter, with a 60 mil EPDM or Neoprene compression-molded body, a 70 mil PVC or TPO injection-molded base, and the Portals Plus Snaplock Clamp. Available in White or Black EPDM, Black Neoprene, White TPO, and PVC in White, Gray, Tan, or Energy Gray; use Portals Plus Adapters for square tubing, angle iron…

Menzies Dektite Retro Combo - Black

Suitable for both standard and retrofit applications — slide down the pipe without cutting, or cut along the zipper and use the supplied clips. Withstands constant roofline temperatures from -58°F up to 239°F. Nine sizes cover pipes from 1/4" up to 30" O.D. Listed to meet CSA B272 and IAPMO PS 64-2007a; 20-year warranty.

Menzies Dektite Retro Combo - SHR (Shingle Roof Retro Flashing)

Shingle roof retro flashing that fits pipe O.D. from 0"–6", with clear metric and imperial markings for easy cutting to pipe size and a 15" x 15" base. Made in black from a proprietary polymer compatible with asphalt shingles, with an aluminum flange that nails securely to the roof. Slide down the pipe without cutting, or cut along the zipper and use the…

Menzies Dektite Retro Combo - Silicone

High-temperature red silicone retro flashing that withstands up to 482°F and down to -58°F. Slide down the pipe without cutting, or cut along the zipper and use the supplied clips; seven sizes cover pipes from 1/4" up to 13" O.D. Conforms to all roof profiles, paintable with 100% high-gloss acrylic paint. Listed to meet CSA B272 and IAPMO PS 64-2007a…

Menzies Electrical Retro Box

Designed to seal around electrical cables without disconnecting — position and encompass the box around the penetration, fasten, then flash with roofing membrane. Made of heavy 24-gauge galvanized steel to reduce labor costs. Custom sizes on request; also available in TPO Direct Weld™ (flange and box base).

Menzies Electrical Roof Flashing

Professional solution for electric cable roof installs, ideal for electrical and solar applications. Available in 2" or 3" sizes for electrical conduits (pitched versions available for steep roofs), with a massive weatherhead on the 3" size for multiple usage and a heavy-duty 4" welded aluminum roof flange. Roof flashing QAI-listed to CSA B272 and IAPMO PS…

Menzies Electrical Roof Flashing TPO

Electrical roof flashing with a TPO-coated flange and Menzies TPO Direct Weld™ for fast installation on TPO roofing systems — ideal for solar applications. Available in 2" or 3" sizes for electrical conduits, with a massive head on the 3" size and a heavy-duty 4" welded aluminum roof flange. Stack and base QAI-listed to CSA B272 and IAPMO PS 64; cap…

Menzies Gas Retro Box

Designed to seal around gas lines without disconnecting — position and encompass the box around the penetration, fasten, then flash with roofing membrane. Made of heavy 24-gauge galvanized steel to reduce labor cost. Custom sizes on request; also available in TPO Direct Weld™ (flange and box base).

Menzies Multi-Flash Insulated Pipe Flashing Pitched

Pitched-roof version of the Multi-Flash insulated pipe flashing — one flashing fits plumbing pipe sizes from 1-1/4" to 4" with no measuring. Heavy aluminum extruded tube welded to a 4" roof flange, with easy tear-out plugs on the top seal to fit pipe size. Quick and easy to install; QAI-listed to CSA B272 and IAPMO PS 64. Roof pitch must be specified when…

Menzies Multi-Flash Insulated Pipe Flashing Spun

One-piece seamless aluminum insulated pipe flashing for flat roofs, with an 8" water height and 4" roof flange. One flashing fits common plumbing pipe sizes from 1-1/4" to 4" — no stocking multiple sizes. Moisture seals at top and bottom create a dead air space that insulates against condensation, with tear-out plugs to fit the pipe size required…

Menzies Multi-Flash Insulated Pipe Flashing Spun TPO

TPO-coated version of the one-piece seamless aluminum insulated pipe flashing for flat roofs, with an 8" water height and 4" roof flange. One flashing fits common plumbing pipe sizes from 1-1/4" to 4", with moisture seals creating an insulating dead air space to prevent condensation and tear-out plugs to fit the pipe size. QAI-listed to CSA B272 and IAPMO…

Plasti-Flash with C-212 Cap

Reliable roof penetration flashing accommodating up to two pipes .375"–1" and two pipes 1"–2" in diameter. Features a durable .090 PVC base unit with a 4" height and 14" square footprint, a collared opening with dual beaded sealing rings, and a white compression-molded EPDM C-212 cap with stainless steel Snaplock Clamps.

Pourable Sealer Pockets

Molded from a proprietary PVC formulation engineered to work with PVC single-ply membranes, eliminating the need to fabricate a pitch pocket in the field. The factory-built detail reduces the risk of leaks and callbacks and is perfect for irregular roof penetrations. Installs on mechanically attached, induction-welded, or adhered systems; available in…

Small Pipe Boot

Seals roof penetrations under 3" in diameter with a durable 60 mil EPDM or HYPALON compression-molded body and the Portals Plus Snaplock Clamp. Available in white or black; pair with Portals Plus Adapter Rings for round penetrations under 1" in diameter.

Small Retrofit

For protrusions of 3" nominal diameter or less penetrating roofs, floors, and walls where the penetration cannot be disconnected or have a seal slid over the top. EPDM for single-ply rubber systems or Neoprene for hot-applied systems (serviceable -60°F to +270°F, ozone- and UV-resistant), with tongue-and-groove sealing lips, an overlapping seam tab, a…

Thermoplastic Shingle Flashing

For all round penetrations from 1.25" through 4" occurring in shingle roofing systems under 40° slope. Consists of an elastomeric collar — resistant to ozone, ultraviolet degradation, and temperature extremes — integrally locked into a rigid, rust-resistant base of black thermoplastic material. Listed by UPC, SBC, and BOCA; available in 1.25"–1.5", 2", 3"…

5-Hole Pipe Portal Flashing System

Premanufactured Pipe Portal® flashing system for pipe penetrations from 1/2" to 2-1/2" nominal pipe O.D. — C-555 caps handle up to five 1/2"–2-1/2" pipes. Can be requested with an RPS premanufactured roof curb, a flashing system cover with sealing ribs on each port for a weather-tight seal and precut port holes for faster installation, and five molded EPDM…

Double Pipe Portal with C-126 and C-212 Caps

Double pipe portal for points where up to two pipes .375"–1", up to two pipes 1"–2", and one pipe 2"–6" in diameter penetrate the roof. Includes an 18-gauge galvanized roof curb (model RC-_A) with integral base plate, continuously welded corner seams, factory-installed wood nailer, and 1.5" rigid fiberglass insulation; a laminated, acrylic-coated ABS…

Double Pipe Portal with C-126 and C-412 Caps

Double pipe portal for points where one penetration 2"–6" in diameter and up to four pipes 1"–2" in diameter penetrate the roof. Includes an 18-gauge galvanized roof curb (model RC-_A) with integral base plate, continuously welded corner seams, factory-installed wood nailer, and 1.5" rigid fiberglass insulation; a laminated, acrylic-coated ABS plastic curb…

Double Pipe Portal with C-126 and C-481 Caps

Double pipe portal for points where one penetration 2"–6" in diameter and up to four pipes .375"–1" in diameter penetrate the roof. Includes an 18-gauge galvanized roof curb (model RC-_A) with integral base plate, continuously welded corner seams, factory-installed wood nailer, and 1.5" rigid fiberglass insulation; a laminated, acrylic-coated ABS plastic…

Double Pipe Portal with C-212 and C-412 Caps

Double pipe portal for points where up to two pipes .375"–1" in diameter and six pipes 1"–2" in diameter penetrate the roof. Includes an 18-gauge galvanized roof curb (model RC-_A) with integral base plate, continuously welded corner seams, factory-installed wood nailer, and 1.5" rigid fiberglass insulation; a laminated, acrylic-coated ABS plastic curb…

Double Pipe Portal with C-212 and C-481 Caps

Double pipe portal for points where up to six pipes .375"–1" in diameter and two pipes 1"–2" in diameter penetrate the roof. Includes an 18-gauge galvanized roof curb (model RC-_A) with integral base plate, continuously welded corner seams, factory-installed wood nailer, and 1.5" rigid fiberglass insulation; a laminated, acrylic-coated ABS plastic curb…

Double Pipe Portal with C-412 and C-481 Caps

Double pipe portal for points where up to four pipes .375"–1" in diameter and four pipes 1"–2" in diameter penetrate the roof. Includes an 18-gauge galvanized roof curb (model RC-_A) with integral base plate, continuously welded corner seams, factory-installed wood nailer, and 1.5" rigid fiberglass insulation; a laminated, acrylic-coated ABS plastic curb…

Double Pipe Portal with two C-126 Caps

Double pipe portal for points where two pipes 2"–6" in diameter penetrate the roof. Includes an 18-gauge galvanized roof curb (model RC-_A) with integral base plate, continuously welded corner seams, factory-installed wood nailer, and 1.5" rigid fiberglass insulation; a laminated, acrylic-coated ABS plastic curb cover with molded sealing rings on two 8"…

Double Pipe Portal with two C-212 Caps

Double pipe portal for points where up to four pipes .375"–1" in diameter and up to four pipes 1"–2" in diameter penetrate the roof. Includes an 18-gauge galvanized roof curb (model RC-_A) with integral base plate, continuously welded corner seams, factory-installed wood nailer, and 1.5" rigid fiberglass insulation; a laminated, acrylic-coated ABS plastic…

Double Pipe Portal with two C-412 Caps

Double pipe portal for points where up to eight pipes 1"–2" in diameter penetrate the roof. Includes an 18-gauge galvanized roof curb (model RC-_A) with integral base plate, continuously welded corner seams, factory-installed wood nailer, and 1.5" rigid fiberglass insulation; a laminated, acrylic-coated ABS plastic curb cover with molded sealing rings on…

Double Pipe Portal with two C-481 Caps

Double pipe portal for points where up to eight pipes .375"–1" in diameter penetrate the roof. Includes an 18-gauge galvanized roof curb (model RC-_A) with integral base plate, continuously welded corner seams, factory-installed wood nailer, and 1.5" rigid fiberglass insulation; a laminated, acrylic-coated ABS plastic curb cover with molded sealing rings on…

Heavy Duty Adjustable Pipe Mounting Pedestal

Heavy-duty pipe support built on a standard RPS equipment rail base with 10-gauge pre-galvanized channel, a 10-gauge galvanized bottom spreader plate welded to angle brackets, and 1/2" diameter electro-galvanized bolts. Adjusts 12" vertically; models PMP-8, PMP-10, and PMP-12 for 8", 10", and 12" pipe, with larger sizes available.

Pipe Portal with C-126 Cap

Single pipe portal system for points where one penetration 2"–6" in diameter penetrates the roof. Includes an 18-gauge galvanized roof curb (model RC-_A) with integral base plate, continuously welded corner seams, factory-installed wood nailer, and 1.5" rigid fiberglass insulation; a laminated, acrylic-coated ABS plastic curb cover with molded sealing ring…

Pipe Portal with C-182 Cap

Single pipe portal system for points where pipes 8"–12" in diameter penetrate the roof. Includes an 18-gauge galvanized roof curb (model RC-_A) with integral base plate, continuously welded corner seams, factory-installed wood nailer, and 1.5" rigid fiberglass insulation; a laminated, acrylic-coated ABS plastic curb cover with molded sealing ring on a 14"…

Pipe Portal with C-212 Cap

Single pipe portal system for points where up to two pipes .375"–1" in diameter and two pipes 1"–2" in diameter penetrate the roof. Includes an 18-gauge galvanized roof curb (model RC-_A) with integral base plate, continuously welded corner seams, factory-installed wood nailer, and 1.5" rigid fiberglass insulation; a laminated, acrylic-coated ABS plastic…

Pipe Portal with C-412 Cap

Single pipe portal system for points where up to four pipes 1"–2" in diameter penetrate the roof. Includes an 18-gauge galvanized roof curb (model RC-_A) with integral base plate, continuously welded corner seams, factory-installed wood nailer, and 1.5" rigid fiberglass insulation; a laminated, acrylic-coated ABS plastic curb cover with molded sealing ring…

Pipe Portal with C-481 Cap

Single pipe portal system for points where up to four pipes .375"–1" in diameter penetrate the roof. Includes an 18-gauge galvanized roof curb (model RC-_A) with integral base plate, continuously welded corner seams, factory-installed wood nailer, and 1.5" rigid fiberglass insulation; a laminated, acrylic-coated ABS plastic curb cover with molded sealing…

Combination Flange Expansion Joint Cover

Factory-manufactured flexible, weatherproof expansion joint cover with a 3-ply reinforced bellow supported by durable closed-cell foam, and metal mounting flanges (galvanized, aluminum, stainless, or copper) factory-locked to each edge. Withstands extreme chemical and weather conditions without leakage; for use with all roofing types including asphalt, coal…

Combination Inside and Outside Corner PVC

Premolded corner for all roof corners including parapet walls and architectural or mechanical openings such as skylights, hatches, exhaust fans, and rooftop furnaces — each combination molding can be cut into one inside or outside corner. 3" high with a 6" flange and radius corners, injection molded of .060" thick PVC for single-ply PVC roofs. Available in…

Curb Flange Expansion Joint Cover

Factory-manufactured expansion joint cover with a 3-ply reinforced EPDM bellow and laminated closed-cell foam backing, factory double-locked to galvanized steel, aluminum, stainless steel, or copper flanges along both long edges. Flanges are fabricated with an integral counter flashing and drip edge for all curb applications; bellow widths from 4" to 12"…

ER-2A — Equipment Rails for Lightweight Fill, Tapered Insulation, or Single-Ply Roofing

Equipment rails of 18-gauge galvanized steel, monolithic construction, with integral base plate, continuously welded corner seams, factory-installed 2x4 wood nailer (12" height) or 2x6 wood nailer (18" height), and 18-gauge galvanized counter-flashing with screws. Use style ER-2A at 12" or 18" overall height on single-ply roofing, lightweight fill, or…

ER-3A — Equipment Rails for Uninsulated Decks

Equipment rails of 18-gauge galvanized steel, monolithic construction, with integral base plate, continuously welded corner seams, factory-installed 2x4 wood nailer, and 18-gauge galvanized counter-flashing with screws. Use style ER-3A — with built-in cant extended to full mitered corners, 8" overall height — on built-up or modified bitumen roofing…

ER-4A — Equipment Rails for Insulated Decks

Equipment rails of 18-gauge galvanized steel, monolithic construction, with integral base plate, continuously welded corner seams, factory-installed 2x4 wood nailer, and 18-gauge galvanized counter-flashing with screws. Use style ER-4A — with built-in cant starting 1.5" above the baseplate, extended to fully mitered corners, 9.5" overall height — on…

Inside Corner EPDM

Premolded inside corner for all roof corners including parapet walls and architectural or mechanical openings such as skylights, hatches, exhaust fans, and rooftop furnaces. 8" high with 6" legs, radius corners, and feathered edges for good adhesion; injection molded of .060" thick EPDM for single-ply rubber roofs or Neoprene for hot-applied built-up roofs…

Large Aluminum Breather

Two-way roof breather made of .060 spun aluminum with an 11.5" base flange diameter and a height of no less than 11". The stand pipe has a 6.5" base opening and a 4.5" counter flashing rain cap of the locking, vandal-proof type — available factory installed or shipped loose for field installation. Furnish and install at a spacing of one per 1,500 square…

Large Aluminum Vent

One-way roof vent made of .060 spun aluminum with an 11.5" base flange diameter and a height of no less than 11". The stand pipe has a 6.5" base opening and a 4.5" counter flashing rain cap of the locking, vandal-proof type — available factory installed or shipped loose for field installation. Furnish and install at a spacing of one per 1,500 square feet.

Menzies Econo Cap Spun Aluminum

Spun aluminum cap for use with the corresponding aluminum plumbing stack. Available in 1-1/4", 1-1/2", 2", 3", 4", and 5" sizes, with 6" available by request. Smaller insert pipe sizes available when an incorrect size stack has been installed; also available in TPO Direct Weld™.

Menzies Econo Cap Spun Aluminum TPO

TPO-coated spun aluminum cap, coated to match the plumbing stack, for use with the corresponding aluminum stack. Available in white in 1-1/4", 1-1/2", 2", 3", 4", and 5" sizes, with 6" available by request. Smaller insert pipe sizes available when an incorrect size stack has been installed.

Menzies Plumbing Stack Aluminum Flat - Welded

Heavy aluminum extruded tube HOTWELDED to a round full flange with pre-drilled holes for easy fastening — resists torching. Available in 1-1/4" through 8" sizes with 12", 18", and 24" lengths on most diameters; custom lengths, diameters, and all pitches by special order. Listed to meet Canadian and U.S. standards by QAI; meets CSA B272 and IAPMO PS 64. Also…

Menzies Plumbing Stack Aluminum Flat - Welded TPO

TPO-coated heavy aluminum extruded tube welded to a round flange with pre-drilled holes for easy fastening — Menzies TPO Direct Weld™ for fast installation on TPO roofing systems. Available in 1-1/4", 1-1/2", 2", 3", and 4" sizes (5" special order), with custom lengths, diameters, and all pitches by special order. Listed to meet Canadian and U.S. standards…

Menzies Plumbing Stack Spun Aluminum

One-piece seamless spun aluminum plumbing stack for flat roofs only, working with either Econo or Vandalproof aluminum caps. Available in 1-1/2", 2", 3", 4", and 5" sizes. Listed to meet Canadian and U.S. standards by QAI; meets CSA B272 and IAPMO PS 64. Also available in TPO Direct Weld™.

Menzies Plumbing Stack Spun Aluminum TPO

High-quality TPO-coated one-piece seamless plumbing stack for flat roofs only, working with either Econo or Vandalproof aluminum caps. Available in 1-1/2", 2", 3", 4", and 5" sizes. Listed to meet Canadian and U.S. standards by QAI; meets CSA B272 and IAPMO PS 64.

Menzies Small Insert Caps

Insert caps for use where the wrong size pipe has been installed — each cap steps down to fit the next pipe size (e.g., 1-1/2" cap for 1-1/4" pipe, up to 5" cap for 4" pipe). Available in 1-1/2" through 5" sizes, with 6" available by special request.

Menzies Vandalproof Caps

Heavy-gauge aluminum caps designed to prevent vandalism, for use with either welded or spun aluminum stacks — designed to be pop-riveted to the stack to prevent removal. Available in 1-1/4", 1-1/2", 2", 3", 4", and 5" sizes with 6" by request; smaller insert pipe sizes available when an incorrect size stack has been installed. Also available in TPO Direct…

Menzies Vandalproof Caps TPO

TPO-coated heavy-gauge aluminum caps designed to prevent vandalism, coated to match plumbing stacks — for use with either welded or spun aluminum stacks, pop-riveted to the stack to prevent removal. Available in white in 1-1/4", 1-1/2", 2", 3", 4", and 5" sizes with 6" by request; smaller insert pipe sizes available when an incorrect size stack has been…

Outside Corner With Cant Neoprene

Premolded outside corner with cant for roof systems that have built-in cant strips — for all roof corners including parapet walls and architectural or mechanical openings. 8" high with 6" legs, radius corners, and feathered edges for good adhesion; injection molded of .060" thick Neoprene for hot-applied built-up roofs. Serviceable from -60°F to +270°F…

Pedestal Plus

Award-winning pedestal (Gold Medal, 10th Annual ACHR Dealer Design Awards) for securing rooftop piping systems — gas, refrigeration, electrical, and solar conduit lines from 1/2" to 3" diameter. Made of UV-stable, reinforced white PVC with 25% recycled material, contributing to LEED credits. Supports loads up to 150 lbs with supports spaced 10 feet apart…

Pipe Mounting Pedestal with ER-2A Equipment Rail

Pipe mounting pedestal built on a 2-foot Portals Plus ER-2A equipment rail of 18-gauge galvanized steel with continuously welded corner seams, factory-installed wood nailer, and galvanized steel cap with integral drip edge. Includes a 24" steel slide channel on U-shaped mounting brackets and a 2", 4", or 6" cast iron pipe roller assembly with threaded rods…

Pipe Mounting Pedestal with ER-3A Equipment Rail

Pipe mounting pedestal built on a 2-foot Portals Plus ER-3A equipment rail of 18-gauge galvanized steel with continuously welded corner seams, factory-installed wood nailer, and galvanized steel cap with integral drip edge. Includes a 24" steel slide channel on U-shaped mounting brackets and a 2", 4", or 6" cast iron pipe roller assembly with threaded rods…

Pipe Mounting Pedestal with ER-4A Equipment Rail

Pipe mounting pedestal built on a 2-foot Portals Plus ER-4A equipment rail of 18-gauge galvanized steel with continuously welded corner seams, factory-installed wood nailer, and galvanized steel cap with integral drip edge. Includes a 24" steel slide channel on U-shaped mounting brackets and a 2", 4", or 6" cast iron pipe roller assembly with threaded rods…

Plastic Breather

Two-way roof breather made of black High Density Polyethylene with a 10.5" base flange diameter and a height of no less than 7.75". The stand pipe has a 5.5" base opening and a 2.5" counter flashing rain cap of the locking, vandal-proof type. Furnish and install at a spacing of one per 1,000 square feet.

Plastic Vent

One-way roof vent made of black High Density Polyethylene with a 10.5" base flange diameter and a height of no less than 7.75". The stand pipe has a 5.5" base opening and a 2.5" counter flashing rain cap of the locking, vandal-proof type. Furnish and install at a spacing of one per 1,000 square feet.

Snaplock Clamp

SNAPLOCK stainless steel clamp band for all penetrations on roofs, walls, and floors. Constructed with a stainless steel band and housing, zinc-plated yellow-chromate carbon steel bridge, and .3125" screw. Seven sizes cover clamp diameters from 3/4" up to 15".

Standard Aluminum Breather

Two-way roof breather made of .050 spun aluminum with a 12" base flange diameter and a height of no less than 9". The stand pipe has a 4.25" base opening and a 2.75" counter flashing rain cap of the locking, vandal-proof type. Furnish and install at a spacing of one per 1,000 square feet; insulation insert available for the standard size.

Standard Aluminum Vent

One-way roof vent made of .050 spun aluminum with a 12" base flange diameter and a height of no less than 9". The stand pipe has a 4.25" base opening and a 2.75" counter flashing rain cap of the locking, vandal-proof type. Furnish and install at a spacing of one per 1,000 square feet; insulation insert available for the standard size.

Straight Flange Expansion Joint Cover

Factory-manufactured expansion joint cover with a 3-ply reinforced EPDM bellow and laminated closed-cell foam backing, factory double-locked to straight galvanized steel, aluminum, stainless steel, or copper flanges along both long edges. Bellow widths 4"–12", most sizes packaged as 50-foot coils; matching corners, tees, and crossovers manufactured by…

Tapes and Adhesives

PlusSeal is a complete line of tapes and adhesives for single-ply roofing: a three-in-one solvent-based bonding adhesive suitable for EPDM, PVC, and TPO (1 and 5-gallon pails), EPDM primer, plus EPDM seam tape, cover strip, and flashing tape for watertight seams, fastener protection, and flashing rooftop penetrations. A repair kit with tools is also…

UVC — Universal Vent Cap

Convenient solution for a variety of rooftop vent, flue, and B-vent installations (not for use with solid fuel). Self-centering, adjustable design with a worm gear clamp for one-tool adjustability means quick, easy installation. Three sizes fit pipes with outside diameters from 3" to 8.5"; aluminum construction resists rust and corrosion and helps prevent…
